Electrolysis Technology - Generating Hypochlorous Acid (HOCl)

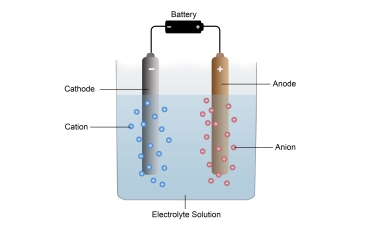

Invention of Electrolysis

01Invention of Electrolysis

Electrolysis is the passing of a direct electric current through an ionic substance. It was first explained by Michael Faraday in the 1830s.

Membrane Electrolysis

02Membrane Electrolysis

Membrane electrolysis generates strongly acidic HOCl and an alkaline byproduct of NaOH from a solution of NaCl (aka. table salt in water).

Single Cell Electrolysis

03Single Cell Electrolysis

Single cell technology was developed to generate a more stable solution of HOCl at an optimal pH without an alkaline byproduct of NaOH.

Stable Hypochlorous Acid

This biggest challenge has been to create hypochlorous acid at a near neutral pH instead of chlorine gas or hypochlorite, and to do so in a stable form. Hypochlorous acid is a meta-stable molecule. It wants to revert back to salt water or convert to hypochlorite.

Generating Stable Hypochlorous Acid

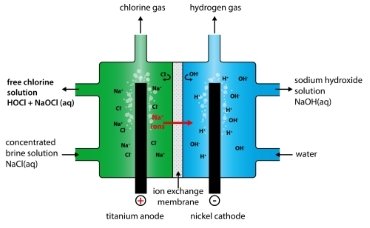

Membrane Cell Technology

The electrolysis cell has two compartments separated by a membrane, an anode compartment and a cathode compartment. The membrane is made from a polymer which only allows positive ions to pass through it toward the cathode compartment. A sodium chloride solution is injected into the anode compartment. The positively charged sodium ions pass through the membrane to the cathode side but the negatively charged chloride ions do not.

Two solutions are generated, an anolyte and a catholyte. On the anode side, a solution of hypochlorous acid is generated that is strongly acidic and with an ORP > 800 mV. On the cathode side, a solution of NaOH is generated that is strongly alkaline and with an ORP < -800. Neither solution generated is stable. Both the anolyte and catholyte seek to return to an equilibrium. Both solutions rapidly lose their ORP.

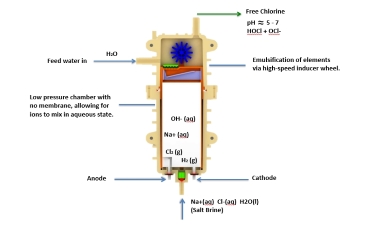

Single Cell Technology

Single cell electrolysis generates only one solution, an anolyte of hypochlorous acid. The electrolysis cells have a single compartment that contains both the anode and cathode and are engineered to generate a single solution with an ORP > 800. Using an acidified brine, a neutral to acidic free chlorine solution is generated that is dominated by hypochlorous acid. The HOCl solution remains stable and the HOCl molecules are only deactivated when exposed to an organic surface or the oxygen in the air.


Hypochlorous acid (HOCl) is already produced by the white blood cells in our blood for protecting against invading microbial pathogens. When microbial pathogens try to enter a wound, white blood cells are the first responders and engulf the bacteria exposing them to the biocide HOCl. Because HOCl is non-irritant and gentle on skin, it makes sense to use it for wound care. In addition, it can replace all general sanitation chemicals used to clean healthcare facilities. Eliminating toxic chemicals not only makes sense but provides a safer environment for children and the elderly.


Food Safety

The majority of the research that has been done regarding the practical applications of hypochlorous acid has been in the field of food safety. Since the Food Safety Modernization Act (FSMA) was signed into law in 2011, the focus of food safety has shifted from responding to contamination to preventing it. There is probably no food sanitizer more researched and more understood than hypochlorous acid. The research clearly demonstrates that hypochlorous acid is safe and efficient for ensuring microbial counts are maintained below infectious levels on food and contact surfaces.
